Devices
Discover our devices
Three configurations. One uncompromising protocol.
QQ-500D

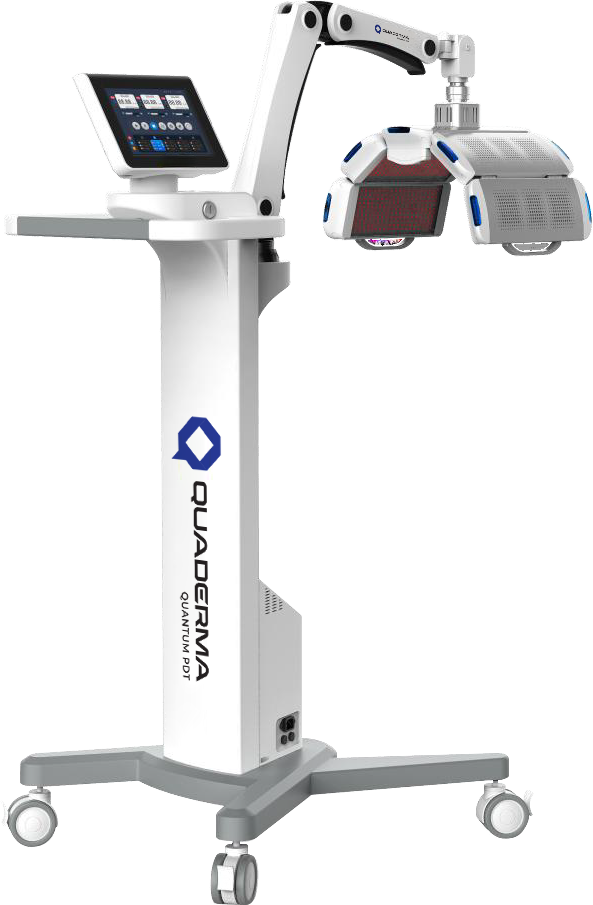

Quantum PDT Dual
Efficient. Mobile. High-volume.
High-volume practices face one constraint that has nothing to do with clinical knowledge: time. The Dual is built for throughput without compromise.
- Wavelengths
- Red 633nm · Blue 417nm (±10nm each)
- Power density
- Red 20–96 mW/cm² · Blue 6–40 mW/cm²
- Treatment area
- 800 cm² (±10%)
- Display
- 8" touchscreen
- Emission modes
- Continuous · Pulsed · Sequential
- Console arm
- Mobile articulating
- LED lifespan
- 50,000h
- Consumables
- None
- Certifications
- CE · ISO 13485
- Pre-loaded protocols
- Scalp / androgenetic alopecia · Seborrheic dermatitis · Same-session recovery
- Best for
- High-volume dermatological practice
QQ-500F

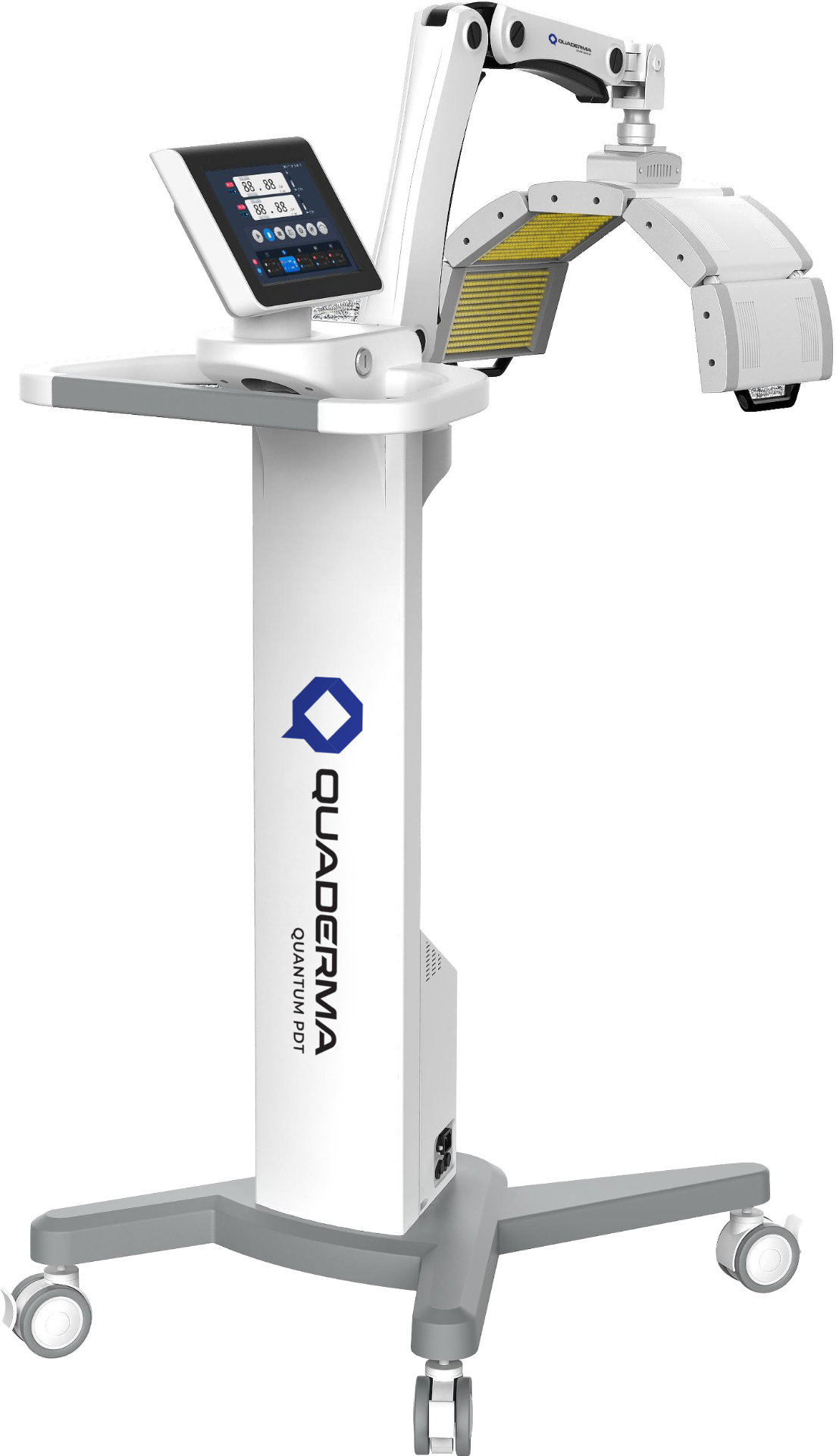

Quantum PDT Flex
Focused. Precise. Complete.
Most practices don't need five panels, five wavelengths and twenty-four configurations. They need one device that executes core PDT and PBM protocols with absolute precision.
- Wavelengths
- Blue 417nm · Red 633nm · Yellow 590nm (±10nm each)
- Peak absorption — Yellow
- 590 nm (±10 nm)
- Power density
- Red 20–96 mW/cm² · Blue 6–40 mW/cm²
- Treatment area
- 800 cm² (±10%)
- Display
- 8" capacitive touchscreen
- Emission modes
- Continuous · Pulsed · Sequential
- Console arm
- Articulating
- LED lifespan
- 50,000h
- Consumables
- None
- Certifications
- CE · FDA
- Pre-loaded protocols
- 5-ALA PDT (acne) · Actinic keratosis · Superficial BCC · PBM
- Best for
- Focused PDT practice
QQ-500P
Quantum PDT Pro
Complete. Unrestricted. Definitive.
For practices that need the full scope of photodynamic therapy — from oncological non-melanoma skin cancer PDT across field cancerization to multi-indication PBM in the same session. Five independent LED panels, four wavelengths, up to twenty-four configurations.
- Wavelengths
- Blue 417nm · Green 525nm · Red 633nm · NIR 830nm (±10nm each)
- Power density
- Red 20–96 mW/cm² · Blue 6–40 mW/cm²
- Treatment area
- Up to 24 wavelength/mode combinations
- Display
- 10.4" touchscreen
- Emission modes
- Continuous · Pulsed · Sequential · Simultaneous
- Console arm
- Six-axis articulating · Flat or curved panel
- LED lifespan
- 50,000h
- Consumables
- None
- Certifications
- CE · FDA · Class IIa
- Pre-loaded protocols
- Full PDT oncology (BCC, AK, Bowen's Disease, field cancerization)
- Best for
- Full-spectrum PDT & PBM platform
Still deciding? See them side-by-side.
| Best for | QQ-500D Quantum PDT Dual | QQ-500F Quantum PDT Flex | QQ-500P Quantum PDT Pro |
|---|---|---|---|
| Wavelengths | Red · Blue | Red · Blue · Yellow | Red · Blue · Green · Infrared |
| Power density | Red 20–96 mW/cm² · Blue 6–40 mW/cm² | Red 20–96 mW/cm² · Blue 6–40 mW/cm² | Red 20–96 mW/cm² · Blue 6–40 mW/cm² |
| Display | 8" touchscreen | 8" capacitive touchscreen | 10.4" touchscreen |
| Console arm | Mobile articulating | Articulating | Six-axis articulating · Flat or curved panel |
| Certifications | CE · ISO 13485 | CE · FDA | CE · FDA · Class IIa |
| Consumables | None | None | None |
